What Is a TF Card? TF vs MicroSD, SD vs TF Card, and Every Difference That Actually Matters

You unbox a shiny new dash cam, and the manual insists on a “TF card.” An hour later, you scroll Amazon and see the same product recommend a “microSD.” A friend then hands you a chunky “SD card” and swears it will fit your phone. If all three names sound like they should mean different things, you are not alone — the memory-card world has been quietly using two names for the same product for more than two decades.

This guide clears the fog once and for all. Below, you’ll find the true TF card meaning, an honest TF card vs micro SD card breakdown, a side-by-side SD card vs TF card comparison, the real differences between TF memory card vs microSD labels, and buying advice for every device that still uses one — phones, drones, action cams, dash cams, security cameras, and even the Nintendo Switch 2.

💡 Turn everyday memory-card shots into portfolio-worthy images. Try our professional photo retouching and let editors polish every frame for you.

---

TF Card Meaning: What “TF” Actually Stands For

The short answer

“TF” stands for TransFlash. A TF card is a tiny, removable flash-memory card that stores photos, videos, apps, and files inside portable devices. The TF card meaning is refreshingly simple: it is the original brand name for what the world now calls the microSD card. Same size, same pins, same behaviour.

A quick, accurate history

SanDisk developed TransFlash and launched it in October 2004 as the world’s smallest removable flash-memory card. Motorola became the very first phone maker to ship handsets that supported it, and the SD Association then adopted the format in 2005 and renamed it “microSD” so it could sit officially inside the SD standard family. SanDisk kept using “TF” in some product lines, marketplaces copied the label, and the two names have coexisted ever since.

Why the two names still confuse buyers

• Older device manuals still print “TF card slot” on the label.
• Marketplaces on Amazon, AliExpress, and eBay use “TF card” and “microSD” interchangeably.
• Chinese-manufactured dash cams, security cameras, and MP3 players lean heavily on the “TF” abbreviation.
• Newer Western brands use “microSD” almost exclusively.

The takeaway is that a modern TF card and a microSD card are the same physical product. You can buy either label and slot it into the other’s device without a second thought.

---

TF Card vs Micro SD Card: Are They Really the Same?

The technical truth

Yes — the modern TF card and microSD card are electrically, physically, and functionally identical. Both measure exactly 15 mm × 11 mm × 1 mm, weigh around 0.25 grams, use the same 8-pin layout, and follow the same SD Association specifications for capacity, bus speed, and file-system behaviour.

Where the small differences hide

Although they behave the same, a few nuances still trip up first-time buyers:

• Branding origin: SanDisk trademarked “TransFlash,” while the SD Association standardized “microSD.”
• Marketing labels: Some cheap TF cards ship without SD Association certification, so the printed speed class or endurance rating may not be independently verified.
• Documentation: Certain older firmwares call the slot a “TF slot,” even when it accepts modern microSDXC cards.

Stick to mainstream brands — SanDisk, Samsung, Kingston, Lexar, PNY, and Transcend — and the “TF” vs “microSD” label becomes purely cosmetic.

Quick TF vs microSD comparison table

Feature	TF Card	MicroSD Card
Full name	TransFlash	Micro Secure Digital
Introduced	October 2004 (SanDisk; first shipped in Motorola phones)	2005 (renamed by SD Association)
Dimensions	15 × 11 × 1 mm	15 × 11 × 1 mm
Weight	≈ 0.25 g	≈ 0.25 g
Pin count	8	8
Standards body	Originally SanDisk	SD Association
Modern compatibility	100% interchangeable	100% interchangeable

---

SD Card vs TF Card: The Real Differences You Need to Know

The SD card vs TF card comparison is where things actually get interesting, because these two are genuinely different products.

Physical size

A full-size SD card measures 32 mm × 24 mm × 2.1 mm, while a TF card (microSD) measures 15 mm × 11 mm × 1 mm. The SD card takes up roughly four times the footprint and about twice the thickness. That size gap alone explains why smartphones, drones, action cams, and dash cams almost universally choose the tiny microSD form factor.

Write-protection switch

Full-size SD cards include a physical lock switch on the left edge — flip it down and the card becomes read-only. TF cards omit this switch to save space, so write protection depends entirely on the host device or software. If you shoot with a mirrorless camera and want to lock a card after a shoot, the full-size SD card wins on convenience.

Adapter compatibility

Every TF/microSD card slides neatly into a passive plastic microSD-to-SD adapter and then behaves like a full-size SD card. The reverse never works — an SD card cannot shrink into a microSD slot. That one-way compatibility is exactly why photographers usually carry both formats in the same bag.

Maximum theoretical capacity

Both formats share the SDHC/SDXC/SDUC standards, but real-world ceilings differ:

• Full-size SD (SDUC): 128 TB in theory, with 8 TB SDUC models rolling out in late 2026.
• microSD/TF (SDUC): 128 TB in theory, with 2 TB retail cards (SanDisk Extreme 2 TB) already shipping today and 4 TB microSDUC expected in the next wave.

SD card vs TF card side-by-side

Attribute	Full-size SD Card	TF Card / MicroSD
Dimensions	32 × 24 × 2.1 mm	15 × 11 × 1 mm
Weight	≈ 2 g	≈ 0.25 g
Write-protect switch	Yes (physical)	No
Typical devices	DSLRs, mirrorless, laptops, camcorders	Phones, drones, action cams, dash cams
Max retail capacity (2026)	2 TB (8 TB launching)	2 TB (4 TB launching)
Adapter needed?	No (native)	Yes, to fit SD slots
Cost per GB	Slightly higher	Slightly lower

---

TF Memory Card vs MicroSD: Why the Debate Still Exists

Searching “TF memory card vs microSD” in 2026 often produces contradictory answers. Blame outdated marketing. The naming split traces back to 2004–2005, when SanDisk still promoted the original TransFlash brand and the SD Association had just rebranded the exact same card as microSD.

What changed over 20+ years

• Bus speeds jumped from 12.5 MB/s to nearly 985 MB/s with microSD Express.
• Capacities scaled from 128 MB in 2004 to over 2 TB today.
• Physical dimensions never changed — engineers kept the 15×11×1 mm footprint sacred.
• The “TF” label survived on budget marketplaces while premium brands standardized on “microSD.”

The buyer’s rule of thumb

If a slot on your gear says “TF card,” insert any microSD, microSDHC, microSDXC, or microSDUC card and it will work. Focus your attention on capacity, speed class, and endurance rating rather than the printed name.

🎯 Have hundreds of product shots waiting on your card? Get precise clipping paths and turn every SKU into a catalog-ready image overnight.

---

Understanding MicroSD Card Capacity Tiers

Every TF/microSD card belongs to one of four capacity families. Picking the right family prevents the classic “card not recognized” error on older hardware.

The four SD capacity standards

• SD (Standard): up to 2 GB, using FAT12/FAT16. Rare today.
• SDHC (High Capacity): more than 2 GB, up to 32 GB, using FAT32.
• SDXC (eXtended Capacity): more than 32 GB, up to 2 TB, using exFAT.
• SDUC (Ultra Capacity): more than 2 TB, up to 128 TB, using exFAT.

Why the family matters

Older devices only speak specific dialects. A 2012 dash cam that supports only SDHC will refuse a 128 GB SDXC card even though the slot fits perfectly. Newer phones from 2020 onwards typically accept SDXC and, in some cases, SDUC. Always check the host device’s manual before splurging on a 1 TB or 2 TB TF card, otherwise you may waste both time and money.

If you’re doing photo-storage math, our internal deep dive on the 64GB card estimates exactly how many photos each capacity holds by file type and camera sensor.

---

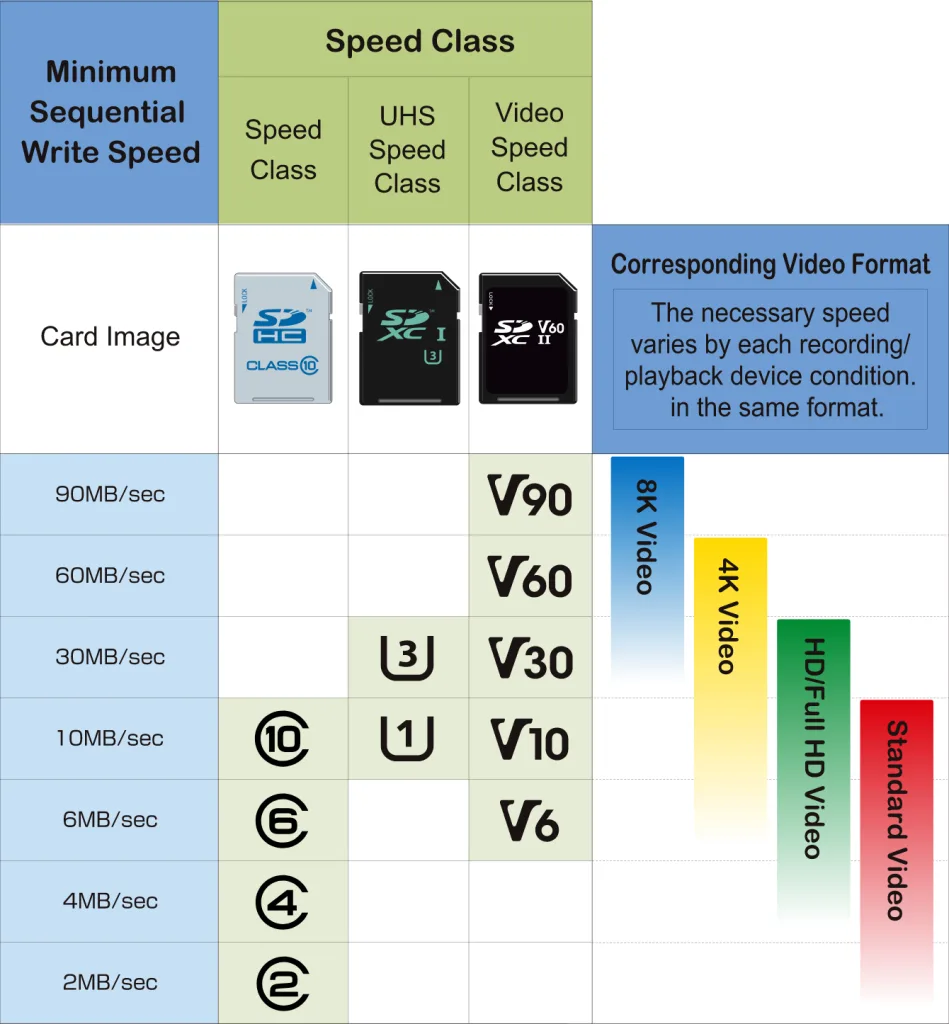

Speed Classes and Bus Interfaces Explained (Without the Headache)

Speed matters more than capacity for one simple reason — a slow card corrupts video, drops frames, and freezes cameras. The SD Association layers four speed-rating systems on top of every TF/microSD card.

Classic Speed Class (legacy)

• C2 — 2 MB/s minimum sustained write
• C4 — 4 MB/s
• C6 — 6 MB/s
• C10 — 10 MB/s (the modern baseline)

UHS Speed Class

• U1 — 10 MB/s minimum sustained write
• U3 — 30 MB/s minimum sustained write (needed for smooth 4K)

Video Speed Class (V-rating)

• V6 / V10 — SD to entry 1080p
• V30 — 4K video baseline
• V60 — high-bitrate 4K and 6K
• V90 — 8K and cinema-grade capture

Application Performance Class

• A1 — 1,500 random-read IOPS, 500 random-write IOPS (great for apps)
• A2 — 4,000 random-read IOPS, 2,000 random-write IOPS (best for gaming handhelds and multi-app phones)

The SD Association publishes the full definition of every class on its speed class reference, and that page remains the authoritative source when specs conflict between manufacturers.

Bus interface — the highway your card drives on

• Default / High Speed — up to 25 MB/s
• UHS-I — up to 104 MB/s (one row of pins)
• UHS-II — up to 312 MB/s (two rows of pins)
• UHS-III — up to 624 MB/s
• SD Express / microSD Express — up to 985 MB/s using PCIe/NVMe

Remember, a UHS-II card in a UHS-I slot works, but it drops back to UHS-I speeds. Match the card’s bus to the device to unlock full performance.

---

MicroSD Express: The Next Generation of TF Cards

The most exciting thing to happen to the tiny memory card in a decade arrived quietly in 2019 and finally hit shelves in force with the Nintendo Switch 2 in 2025. MicroSD Express uses a PCIe Gen3 lane plus the NVMe protocol to push transfer speeds up to 985 MB/s theoretical — real cards from SanDisk and Samsung deliver around 880 MB/s read and 650 MB/s write today.

Why microSD Express matters

• Loads Nintendo Switch 2 games at near-SSD speeds.
• Enables 8K RAW video capture on future action cams and mirrorless bodies.
• Slashes photo-import time from an action shoot dramatically.
• Adds a second row of pins, so older UHS-I slots still accept the card at fallback speeds.

Tom’s Hardware maintains an updated microSD Express roundup that tracks every 2025–2026 Switch 2-compatible card and independently benchmarks each one.

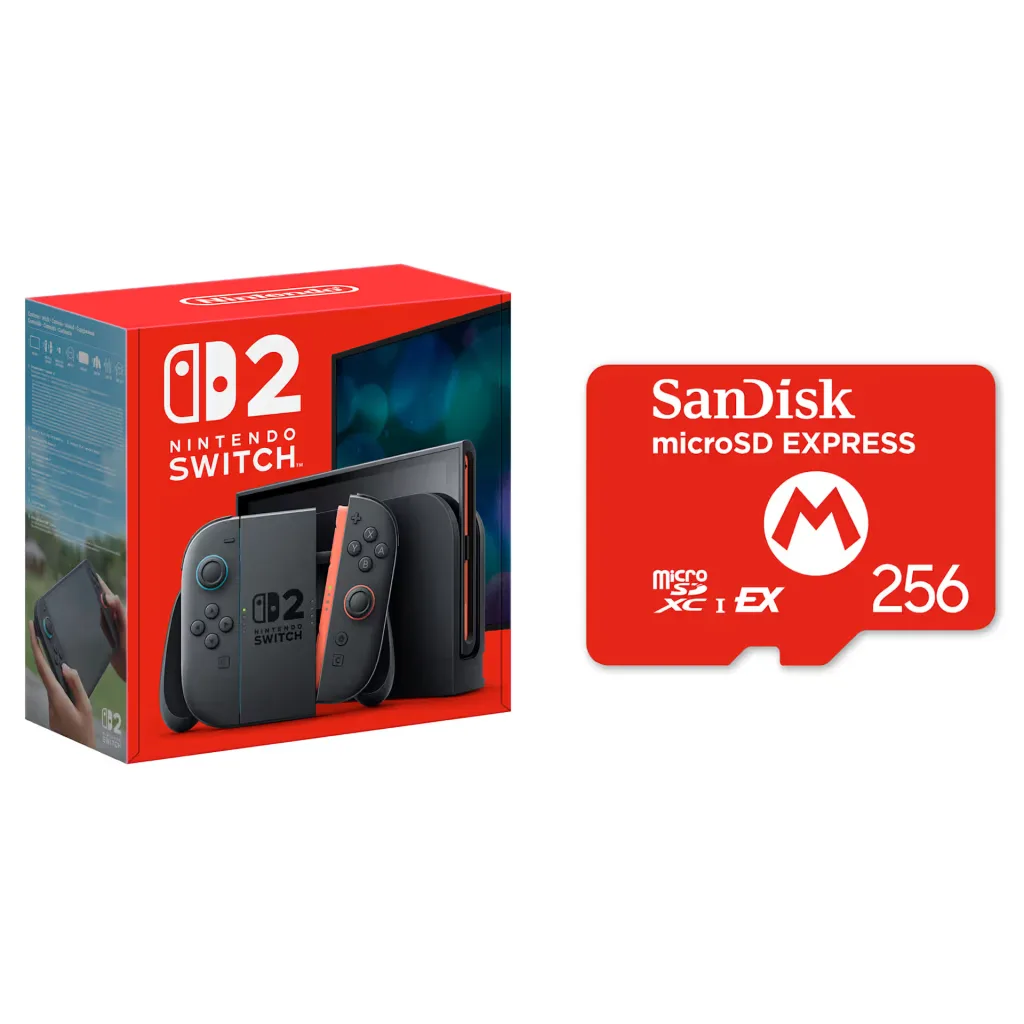

Important note about the Switch 2

Nintendo has officially confirmed that standard microSD cards will not run Switch 2 game data. The console requires microSD Express to store and launch titles. Standard microSDXC cards may only appear in a limited role for screenshots or capture transfers, so treat microSD Express as mandatory if you buy the console.

📸 Editing product photos in bulk? Try our multi clipping path service and get layered PSDs with every element cleanly isolated.

---

How to Choose the Right TF Card for Your Device

Picking a TF card is really a three-question decision — how much storage, how fast, and how tough.

Match the card to the device

• Smartphones and tablets: A2 + V30 + UHS-I is the sweet spot for app-heavy users. Random IOPS matter more than raw sequential write here.

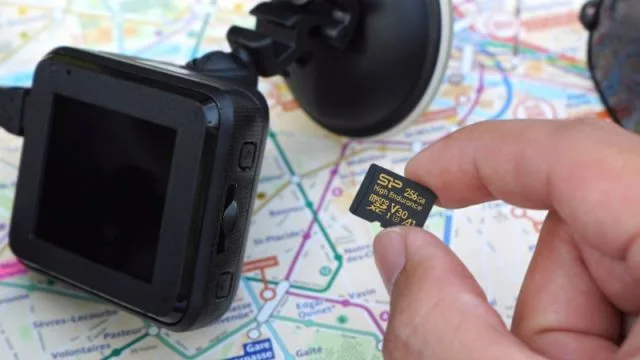

• Dash cams: Choose High Endurance or Max Endurance microSD cards rated for tens of thousands of hours. The constant loop-record cycle destroys generic cards within months.
• Action cameras (GoPro, Insta360, DJI): V30 or V60 for 4K60, V90 for 5.3K and 8K. UHS-II slots are still rare in action bodies, so UHS-I V30 usually suffices.
• Drones (DJI Mini, Air, Mavic, Autel): V30 U3 for 4K, jumping to V60/V90 for high-bitrate D-Log footage.
• Nintendo Switch 2: microSD Express only for games. Never buy a standard microSDXC for gameplay.
• Security cameras: High-endurance cards rated for 24/7 recording with power-loss protection.

If you want a real-world storage estimate before you buy, our 256GB card breakdown shows exactly how many JPEG, HEIF, and RAW files fit at every common sensor size.

---

Common Uses of TF Cards in 2026

TF cards power an enormous range of devices, and the list keeps growing.

Everyday consumer gear

• Smartphones with expandable storage — Samsung Galaxy A-series, Sony Xperia, Motorola Moto G, and select Xiaomi models.
• Tablets running Android or Windows.
• Nintendo Switch (original) and Switch 2 for game libraries.
• E-readers, retro handheld emulators, and portable music players.

Cameras and content creation

• DSLR and mirrorless bodies via a passive SD adapter.
• Point-and-shoot compacts — check our hands-on Sony A6000 breakdown for a real-world example.
• Action cameras — GoPro Hero, DJI Osmo Action, Insta360.
• Drones — DJI Mini 5 Pro, Autel EVO, Skydio X-series.
• Vlogging pockets like the DJI Osmo Pocket 4.

Security and automotive

• Dash cams with loop recording.
• Home and outdoor security cameras (Reolink, Ring, Eufy).
• Trail and wildlife cameras.
• Body-worn cameras used by first responders.

Emerging categories

• Retro gaming consoles — Analogue Pocket, Miyoo Mini Plus, Anbernic devices.
• Raspberry Pi and single-board computers as boot drives.
• Portable game systems using microSD Express.
• Handheld emulator sticks on Android TV boxes.

✨ Turn raw camera-card portraits into flawless finals. Book our headshot retouching service for LinkedIn-ready polish in under 24 hours.

---

TF Card Durability, Endurance, and Care

A TF card looks fragile, yet modern flash chips are surprisingly tough — provided you buy the right grade for the job.

What the endurance ratings really mean

Modern consumer TF cards use TLC (three-bit-per-cell) NAND, which handles roughly 1,000 to 3,000 program/erase cycles per cell. High-endurance cards move to MLC or pSLC flash, and industrial-grade cards can survive 20,000 or more cycles per cell.

Real-world lifespan targets (Full HD continuous recording):

• Standard microSD: for casual photo and file storage — not for continuous recording.
• High Endurance: typically 20,000–40,000 hours across 128–256 GB capacities.
• Max Endurance: up to 120,000 hours on 256 GB cards (SanDisk MAX Endurance).
• Industrial grade: wide-temperature operation (-40 °C to +85 °C) plus power-loss protection.

Environmental toughness

Reputable microSD cards from SanDisk, Samsung, and Kingston pass:

• Water resistance (IPX7)
• Shock resistance up to 500 G
• X-ray protection at airport scanners
• Magnet resistance up to 5,000 gauss
• Temperature range roughly -25 °C to +85 °C

Habits that extend card life

• Always eject safely before pulling the card from a computer.
• Format the card inside the target device, not on a laptop.
• Keep usage below 90% capacity so wear-leveling stays healthy.
• Rotate dash-cam and security-cam cards every 12–18 months.
• Pair the card with the best cloud storage as a redundant backup for irreplaceable shots.

---

Data Loss, Recovery, and TF Card Backup Tips

Every TF card eventually fails — that is simply the nature of NAND flash. A little preparation for that day saves weddings, careers, and vacations.

Prevention checklist

• Use two cards in rotation on paid shoots.
• Copy files to a computer and a cloud drive within 24 hours.
• Verify checksums for wedding, event, or product-photo backups.
• Keep dust off the gold contacts and store cards in a rigid case.

If disaster strikes

Free tools like PhotoRec, Recuva, and Disk Drill recover a surprising percentage of images from healthy but wiped TF cards. For deeper corruption, professional labs use chip-off recovery in a clean room. Photofixal readers regularly ask about accidental deletions, so we published a full walkthrough on how to find deleted photos across phone and card storage.

🖼️ Need clean, transparent backgrounds fast? Use our background removal service for crisp, retail-ready cutouts at scale.

---

TF Card vs SD Card: Which Should You Actually Buy?

The final choice comes down to one question — what device is it going into?

Buy a full-size SD card if…

• Your camera is a DSLR or mirrorless with a dedicated SD slot.
• You want the physical write-lock switch for post-shoot safety.
• You shoot 8K, ProRes, or high-bitrate cinema formats that demand UHS-II or SD Express.
• You value the sturdier build and easier handling when wearing gloves.

Buy a TF (microSD) card if…

• You use a smartphone, tablet, drone, action cam, or dash cam.
• You want a single card that becomes both formats using a passive adapter.
• Portability, weight, and slot space matter more than a lock switch.
• You need a versatile spare that fits every pocket-sized gadget you own.

A note on price

Historically, TF cards cost slightly less per gigabyte than full-size SDs at the same speed class, mainly because higher production volume drives economies of scale. In 2026, that gap has narrowed at the high end but remains obvious at 128 GB and below.

---

Trusted TF Card Brands for 2026

Sticking to reputable manufacturers protects your data and prevents counterfeit heartbreak.

• SanDisk (Western Digital) — the original creator, still the most widely tested brand.
• Samsung — excellent endurance in Pro Plus and Pro Ultimate lines.
• Kingston — strong warranty coverage and consistent quality control.
• Lexar — very competitive pricing for enthusiast photographers.
• Transcend — favoured by dash-cam users for High Endurance and Industrial lines.
• PNY, ADATA, Silicon Power — solid mid-tier picks for casual users.

Avoid unbranded cards that advertise 1 TB for the price of a coffee — nearly all of them are counterfeit, reprogrammed 32 GB chips that corrupt data the moment you exceed the real capacity.

How to spot a counterfeit TF card

• Verify the serial number on the manufacturer’s website before first use.
• Run a full-write test with H2testw (Windows) or F3 (macOS/Linux). Genuine cards match declared capacity.
• Compare read/write speeds against the manufacturer’s published spec sheet.
• Check that the printed logo, font, and hologram match a photo from the official retailer.

---

Common TF Card Problems and Fast Fixes

Even the best cards sometimes misbehave. Here are the fastest troubleshooting steps.

• Card not recognized: Reinsert firmly, try a different reader, or reformat inside the device.
• Slow write speeds: Confirm the host slot supports the card’s bus — a UHS-II card in a UHS-I slot drops back to UHS-I speed.
• “Write-protected” error on a TF card: Reboot the device, run diskpart on Windows, or reformat using the SD Association’s official SD Memory Card Formatter.
• “Card full” but shows empty: Toggle “show hidden files” or run a filesystem repair from disk utility.
• Random corruption: The card is wearing out — migrate data immediately and replace.

Curious how modern image formats change how much space you actually use? Our comparison of HEIF vs JPEG breaks down file-size differences on the same TF card.

---

Frequently Asked Questions (FAQ)

1. Is a TF card the same as a microSD card?

Yes. TF and microSD refer to the identical physical card — same 15×11×1 mm size, same pinout, same standards. “TF” is the original SanDisk brand name and “microSD” is the SD Association’s standardized name.

2. Can I use a TF card in a regular SD card slot?

Absolutely — but you need a passive microSD-to-SD adapter. The adapter re-routes the pins so the full-size SD slot recognizes the card with no loss of speed.

3. What is the biggest TF card I can buy in 2026?

Retail 2 TB microSDXC cards (SanDisk Extreme, Samsung, Lexar) are widely available. The SDUC standard supports up to 128 TB in theory, and 4 TB microSDUC cards are expected to hit shelves in the next wave of releases.

4. Do TF cards work in Nintendo Switch 2?

Only microSD Express cards run game data on the Switch 2. Older UHS-I microSDXC cards will not launch games, and Nintendo has officially confirmed this incompatibility.

5. How long does a TF card last?

A standard consumer TF card lasts roughly 3–5 years of typical use. High-endurance cards built for dash cams and security cameras often last 5–10 years thanks to industrial-grade flash and stronger wear-leveling controllers.

6. Why does my TF card show less capacity than advertised?

Manufacturers count storage in decimal gigabytes (1 GB = 1,000,000,000 bytes) while operating systems count in binary (1 GiB = 1,073,741,824 bytes). A 128 GB card therefore appears as roughly 119 GB in Windows or macOS. A little more space is reserved for the controller and wear-leveling firmware.

7. Are TF card and TransFlash card different products?

No — TransFlash is the original full name and “TF” is simply the abbreviation. Both terms describe the same microSD-format card.

8. Can a TF card damage my phone or camera?

A genuine, correctly rated TF card will never damage hardware. Counterfeit cards, on the other hand, can trigger firmware crashes, corrupt system files, or overheat inside sealed device bodies. Always buy from an authorized retailer.

---

Final Thoughts: The One-Sentence Answer

If you remember nothing else from this guide, remember this — a TF card is a microSD card, an SD card is its bigger sibling, and every modern device picks one of the two based purely on physical size. Choose capacity for how much you shoot, speed class for what you shoot, and endurance grade for how often the card writes new data.

Once your files land safely on your workstation, the real creative work begins. That is where post-production separates a good photograph from a great one.

🎨 Ready to give your photos the finish they deserve? Explore our image masking service for pixel-perfect edges around hair, fur, glass, and other tricky subjects.
